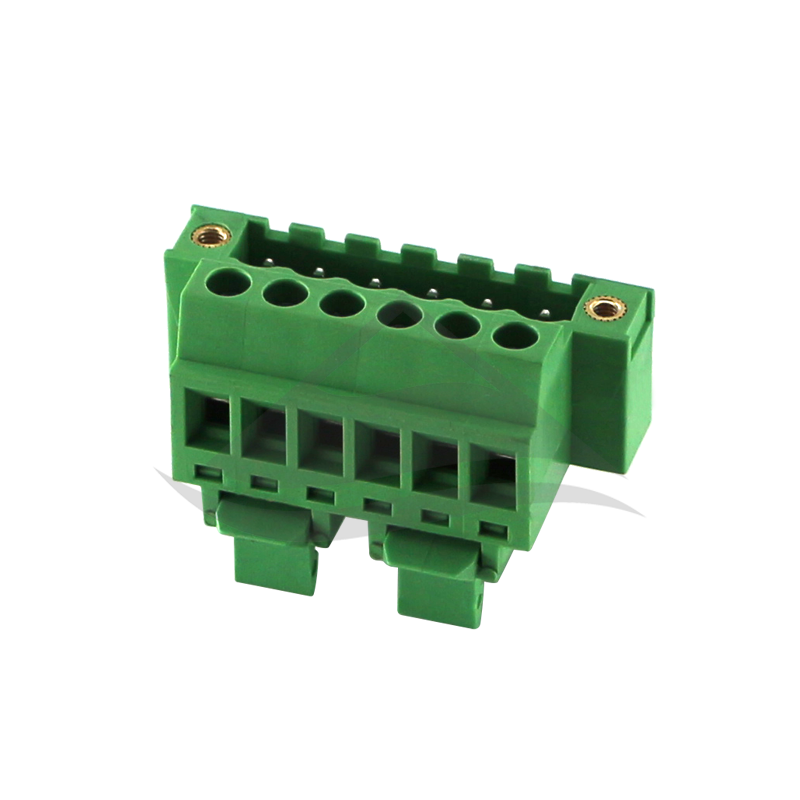

插座—插拔式接線端子
ULO-TB27-2VK/5.08
間距:5.08mm, 額定電壓:300V(cULus),320V(TUV), 額定電流:15A(cULus),12A(TUV) , 適用線經:28-12AWG,0.2-2.5mm2, 線數:2-24P
NEW
基本信息/Basic information
|
產品型號 Product ID |
ULO-TB27-2VK/5.08 |
|
產品間距 Pitch |
5.08mm |
|
產品層次 Number of rows |
1 |
|
接線方式 Connection method |
螺釘接線 |
|
防護等級 Protection Level |
IP20 |
|
工作溫度 Work temperature |
-40~+105℃ |
IEC數據/IEC Data
|
額定電流 Rated Current |
12A |
|
|
|
額定電壓 Rated Voltage |
320V |
|
|
|
過壓類別 Overvoltage category |
Ⅲ |
Ⅲ |
Ⅱ |
|
污染等級 Pollution degree |
3 |
2 |
2 |
|
額定沖擊電壓 Rated impulse voltage |
4KV | 4KV | 4KV |
|
額定電壓 Rated Voltage |
250V | 320V | 630V |
|
硬導線截面積 Conductor cross section solid |
0.2-2.5mm2 |
|
|
|
柔性導線截面積 Conductor cross section flexible |
0.2-2.5mm2 |
|
|
|
柔性導線截面積，帶絕緣管套 Conductor cross section flexible,with furrule |
0.2-2.5mm2 |
|
|
|
鎖線螺釘規格 Locking screw Specification |
M3 |
|
|
|
額定扭矩 Rated Torque |
0.5N.m |
|
|
|
固定螺釘規格 Fixed Screw Specification |
- |
|
|
|
額定扭矩 Rated Torque |
- |
|
|
|
剝線長度 Stripping length |
8mm |
|
|
UL數據 /UL Data
|
使用組別 Use group |
B | C | D |
|
額定電流 Rated Current |
15A | - | 10A |
|
額定電壓 Rated Voltage |
300V | - | 300V |
|
額定接線容量 Rated cross section |
28-12AWG |
|
|
材料信息 /Material Data
|
絕緣材料 Insulation material |
PA66 |
|
絕緣材料組別 Insulation material group |
Ⅰ |
|
阻燃等級，符合UL94 Flame retardant grade, UL94 compliance |
UL94V-0 |
|
導電體材料 Contact material |
銅合金 |
|
導電體表面鍍層 Surface characteristics |
鍍錫 |
產品認證 /Product Certification
|
認證圖標 Certificate |
|
|
UL證書號 UL file No. |
|
|
VDE證書號 VDE No. |
|
|
TUV證書號 TUV No. |
|
包裝信息 /Package Data
|
包裝信息 Package Data |
|
訂購方式/Order method
|
訂購方式 Order method |
|
配套部件

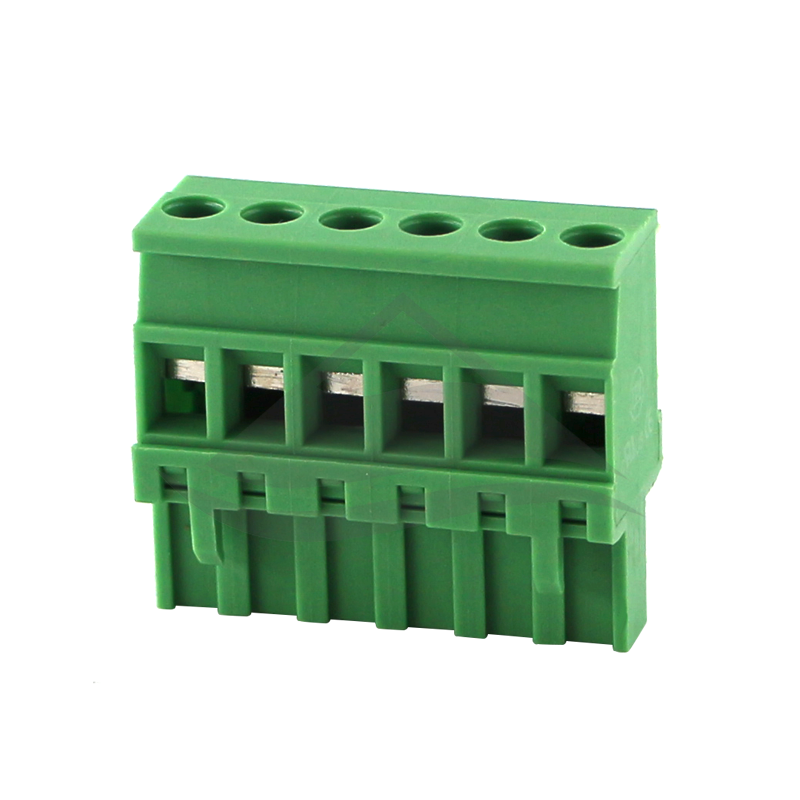

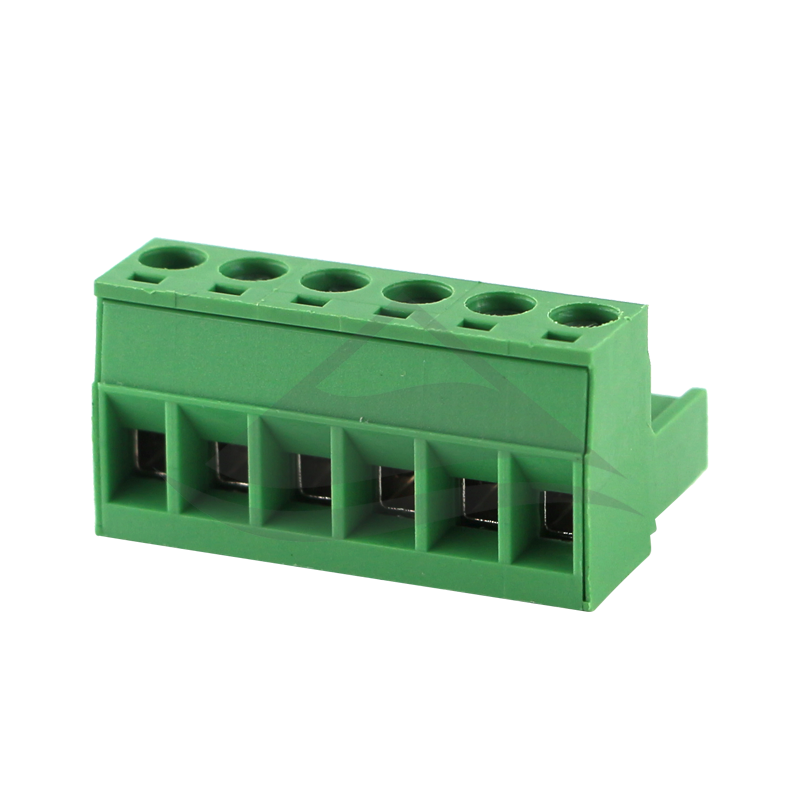

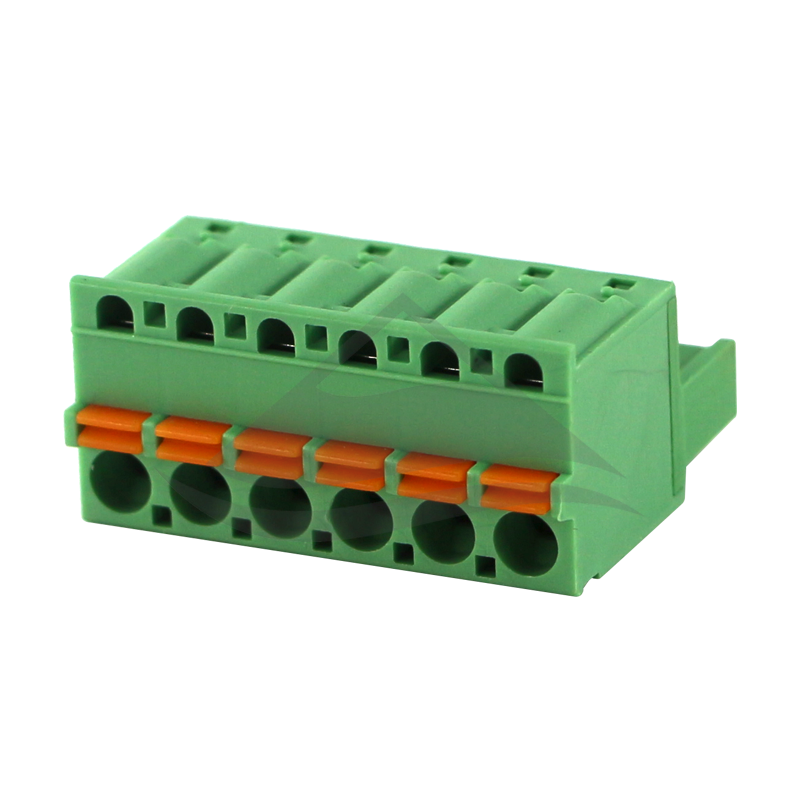

- 關聯產品
